120M HDMI Extender with dual IR 4K@30HzINEX607H

60M HDMI Extender with POC


INEX012
60m HDMI Extender over cat6 cable, support POC,1080P, 3D
MSRP: Quote Upon Request
Contact Us

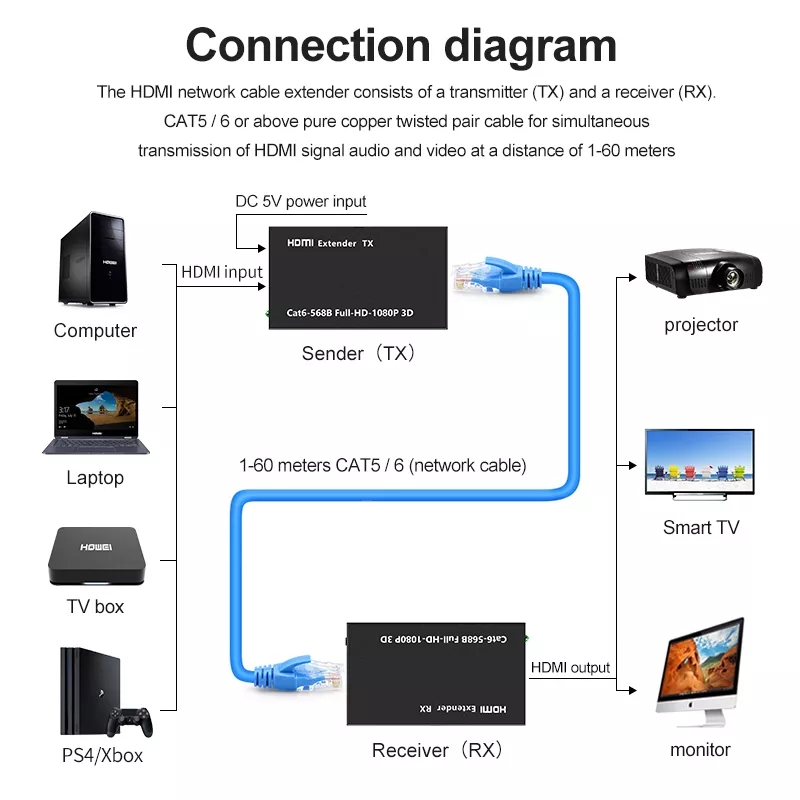

This HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair.
It transmit and extension uncompressed audio and video signal via CAT6/6A/7 network cable, the transmission distance is up to 60 meters with zero latency.
Built-in EDID greatly improves the compatibility of the device.
It supports full HD 1080p@60Hz 3D
This product is perfect for AV transmission in applications of HD conference system, HD video shooting, HD multimedia education system, HD digital advertising and signage etc.

  • Aluminum Alloy Shell,beautiful and light    .
  • Transmission distance extend up to 60 meters over a single cat5e/6/7 cable,
  • Supports resolution up to 1080P@60Hz. 3D
  • Support 8/10/12 bit deep Color.
  • Supports compressed digital audio:Dolby TrueHD, DTS-HD Master Audio.
  • Data transfer speed 6.75 Gbps.
  • Support POC, the receiver DO NOT need the external power adapter (or 5V 1A is optional).

Full HD 1080P 196FT 60m HDMI Extender over cat5e Cat6 Cable HDMI Transmitter and Receiver

Specifications:

HDMI resolution ……....................3D /1080p/1080i/720p/576p/576i/480p/480i

Support video color format …………...............…...24bit/deep color 30bit,36bit

Support audio format…....................................DTS-HD/DolbytrueHD/ LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth……………………………………… ……................…..2250MHz

Max baud rate……………….…….……………….............………....….6.75Gbps

Input/Output TMDS signal …….………..………......…... .0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ……….….………………..……..…… 5Volts p-p (TTL)

Input cable distance..…... …………….………………...….. …..≤10m AWG26 HDMI standard cable

Output cable distance…...............…...…....…..  …….. ≤10m AWG26

Nextwork cable distance …………………………......... . ≤60m over a single CAT6/24AWG/Solid (IEEE-568B)

Max working current…………………………………................………5V/800MA

Power consumption...............................................................5watts(Maximum)

Power adapter format..Input: ....………..…….....AC (50HZ, 60HZ) :100V-240V

Operating Temperature range……….……........……-5 to +35℃(+23 to +95℉)

Operating Humidity range……......…...…….….5 to 90%RH (No Condensation)

Storage Temperature.............................................-20°C ~ 60°C / -4°F ~ 140°F

Dimension (L x W x H)……………….……...... ..................…79x44x23(mm)

Weight…..…………………………..……....................…………………....…220g
